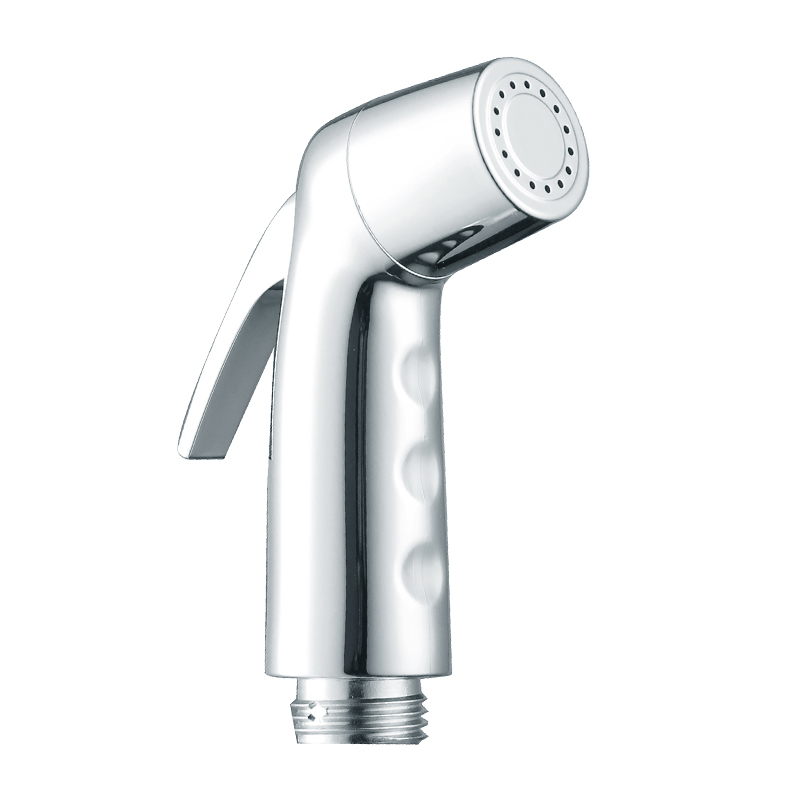

1F Hand Spray-H6B011
Certificate :
1. Single-Function Hand Spray Series
Single function hand spray / 1 spray mode hand spray/ 1F handheld hand spray refer to the same product category—handheld showers with a fixed single water outlet mode, maintaining a consistent water flow pattern without adjustment functions.
Technical Parameter Reference:
Flow Rate:
Standard type ≤7.5 L/min (at 0.10 MPa±0.02 MPa or 1.0-1.2 bar);
water-saving type ≤ 6 L/min meets Grade 2 water efficiency requirements
Interface: Standard G1/2 inch thread
Material: ABS plastic, chrome-plated or mattle black or customized

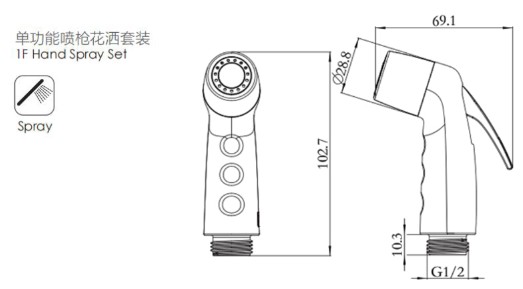

2. 28.8mm Hand Shower Specifications (28.8mm hand shower / 1.13inch hand shower)
28.8mm refers to the diameter of the shower head, equivalent to approximately 1.13 inches—
a common medium-sized handheld shower dimension in the market.
Features: Balances coverage area and hand-holding comfort, suitable for most adult users
Typical Parameters:
Dimensions: 28.8mm in diameter
Weight: Approx. 150–250g (varies by material)
Working Pressure:
Recommended Working Pressure: ≥ 1 bar
3. High-Pressure Showerhead (highpress showerhead)
High-pressure showerheads enhance water outlet impact through special design,
delivering powerful water flow even in low-water-pressure environments.
