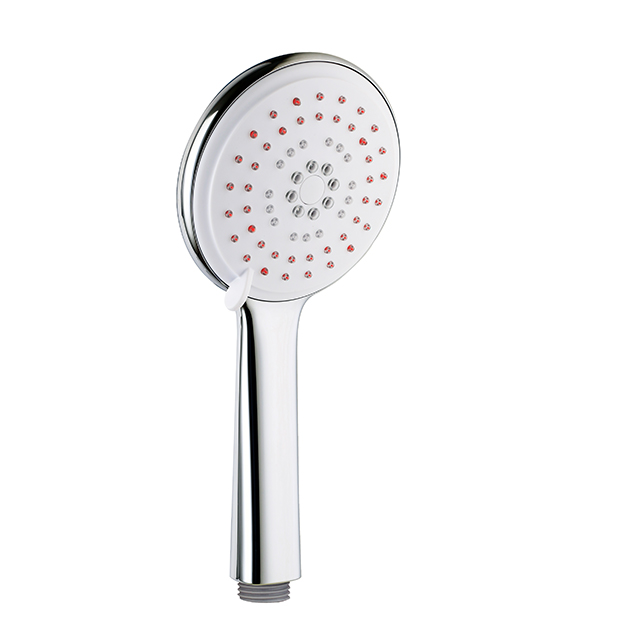

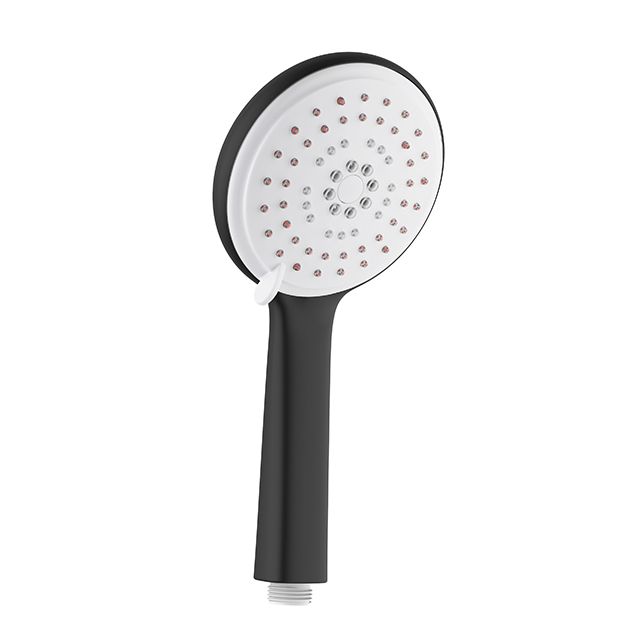

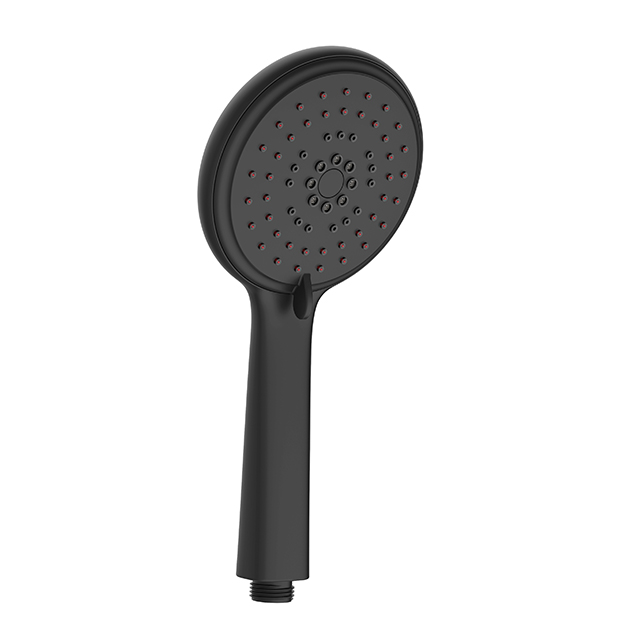

5F Handshower-H17015
Certificate :ACS,WATERMARK,WRAS
1. Five-Function Hand Shower Series
Five function hand shower / 5 spray mode hand shower / 5F handheld showerhead refer to the same product category—handheld showers with Spray,Massage, Aerated , Spray+Massage,Spray+Aerated , maintaining a consistent water flow pattern with adjustment functions.
Technical Parameter Reference:
Flow Rate:
Standard type ≤7.5 L/min (at 0.10 MPa±0.02 MPa or 1.0-1.2 bar);
water-saving type ≤ 6 L/min meets Grade 2 water efficiency requirements
Interface: Standard G1/2 inch thread
Material: ABS plastic, chrome-plated or mattle black or customized

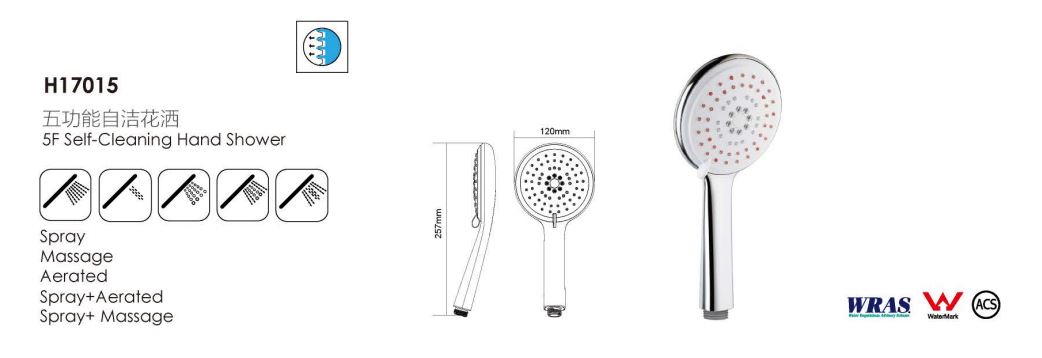

2. 120mm Hand Shower Specifications (120mm hand shower / 4.72inch hand shower)
120mm refers to the diameter of the shower head, equivalent to approximately 4.72inches—
a common medium-sized handheld shower dimension in the market.
Features: Balances coverage area and hand-holding comfort, suitable for most adult users
Typical Parameters:
Dimensions: 120mm in diameter
Weight: Approx. 150–250g (varies by material)
Working Pressure:
Recommended Working Pressure: ≥ 1 bar
3. High-Pressure Showerhead (highpress showerhead)
High-pressure showerheads enhance water outlet impact through special design,
delivering powerful water flow even in low-water-pressure environments.
